| MOQ: | 30 |
| ราคา: | 1 |
| Attribute | Value |
|---|---|

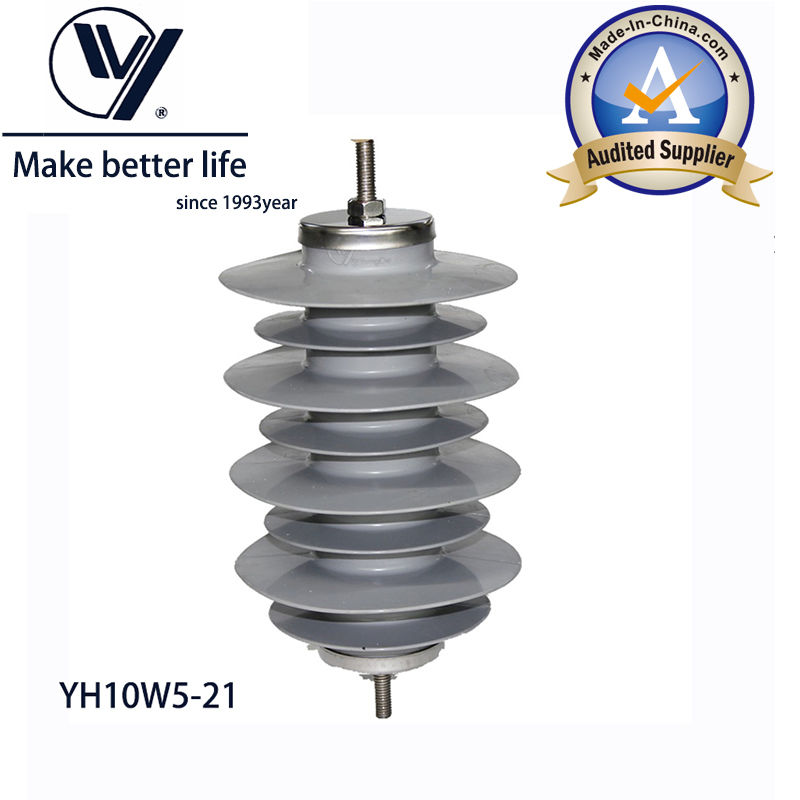

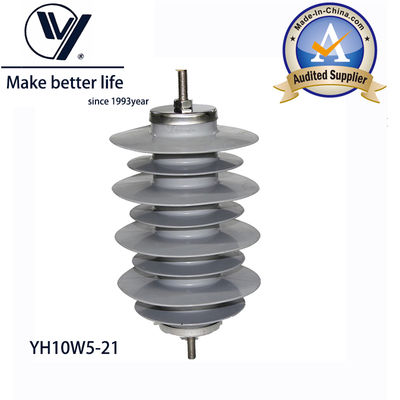

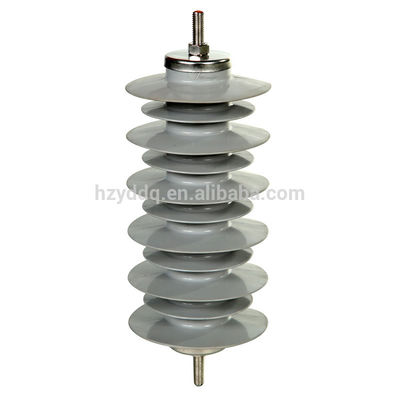

| Model NO. | YH10W-21 |
| Installation | Parallel Arrester |
| Application | Substation |
| Size | Medium |
| Operation Voltage | High Voltage |
| Shape | Cuboid |
| Material | ZnO |
| Brand | Yongde |
| Phase | Single |
| Housing Color | Grey |
| Housing | Polymer |
| Voltage | 21kv |
| Transport Package | Carton |
| Specification | SGS |
| Trademark | YONGDE |
| Origin | Hangzhou |
| HS Code | 85354000 |
| Production Capacity | 5000PCS/ Month |
| Rated voltage | 21KV |
| Shed diameter | 138/108 |
| Height | 218mm |
| Gross weight | 2.5kg |
| Creepage distance | 662 |
| Long duration current impulse | 400A |
| Lightning impulse withstand | 125/150KV |
| Type | YH5W5-21/56 |
|---|---|
| Rated voltage (kV) | 21 |
| MOCV (kV) | 17 |
| Nominal Current (kV) | 10 |
| Residual voltage of steep impulse at 5kA (kV) | 60.5 |
| 8/20µS Residual voltage of lightning impulse current at 5kA (kV) | 56 |
| 1mA D.C reference voltage (kV) | 29.7 |
| Line discharge level | 1 |
| 2mS long duration impulse current (A) | 250 |
| 4/10µS High current impulse (kA) | 65 |
| Lightning impulse withstand (kV) | 125 |
| Power frequency voltage withstand (dry/wet) (kV) | 50 |
| Material employed in series non-linear resistor | Zinc Oxide |
